HW-CMM Connector , HW-321V012F46

Name: HWCMM Connector HW321V012F46
Brand: HIGH WOOD
Price: 10 USD

Buy cheap HW-CMM Connector , HW-321V012F46 product

Brand Name : HIGH WOOD

Model Number : HW-321V012F46

Certification : AS9001

Place of Origin : China

MOQ : 100PCS

Price : 10＄--150＄

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100,000pcs per month

Delivery Time : 2--9 weeks

Packaging Details : standard export package

INSULATOR : Special PPS UL 94-VO

MECHANICAL : Mechanical operations:Up to 2500 cycles contact inssertion and withdrawal force:2 N max./0.2n min.oer ciontact Contact retention in insulator:10 n min Contact replacement in insulator:3 cycles

P.C.LF CONTACTS(Female) : Body:copper alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ

P.C.LF CONTACTS(Male) : Male:tail:copper alloy/Ni+Au flash 0,1µContact area:copper alloy/Ni+Au>1 µ

CRIMP LF CONTACTS : Male: Body:copper alloy/Ni+Au>1µ Female: Body:copper alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ

FIXING HARDARE : Jackscrew:Stainless steel Latch:Bertllium copper/plated nickel

Contact Now

HW-321V012F46

The CMM has been developed for the aerospace,avionics,instrumentation & control,defence and transportation markets,with applications that induce IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also used engine controls.It is also used in a growing number of medical,and telecom applications,The CMM MICRO CONNECTOR interconnection system is a 2mm pitch connector (square matrix) witch proven high.

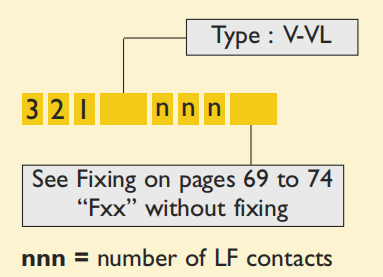

Part numbering:

HW-CMM Connector , HW-321V012F46

Type	L
V	3
VL	4,5

CMM 320/340 MALE AND FEMALE TAPPED FIXING HARDWARE

REFERENCE	ASSEMBLY ON PCB	OVERALL DIMENSIONS	RECOMMENDATION
F46			F46 : CMM female : V-VL-S-C-E (D : 90°) CMM male : V-VL-R-S-C-E (D : 90°)
M51			F51 : CMM female : V-VL-S-C-E (D : 90°) CMM male : V-VL-R-S-C-E (D : 90°)
F50			F50 : Card edge LF contact or mixed
F57
M45

Product Pictures:

HW-CMM Connector , HW-321V012F46
